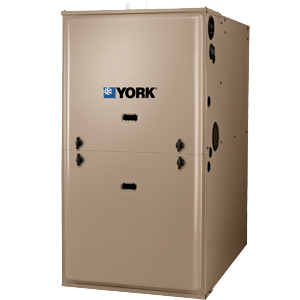

TM9Y 96% Two Stage Variable Speed Gas Furnace

When it's cold outside' everyone wants to relax in a home that's warm and welcoming. That's why we created LX Series Gas Furnaces' so you can take it easy when it comes to all the things you want out of a home heating system. Things like dependable performance' energy efficiency and operating economy. As a result' there's no reason to feel left out in the cold. And because it's built by York — the industry leader in innovative design — you know your system won't be down when you want some downtime.

  • 96% AFUE efficiency lowers fuel cost and consumption.
  • Two stage heating operation includes two stage gas valve' two stage inducer operation and variable speed ECM blower operation. Adjustable delay timer allows two stage operation with a single stage thermostat.
  • ECM variable speed drive for cooling SEER enhancement' improved comfort with optional airflow delay profiles' and continuous fan options for IAQ performance.
  • Compact 33-inch height and standard cabinet widths fit more comfort into less space.
  • Multiple configurations easily applied in upflow' horizontal left or right' or downflow installation with minimal conversion necessary.
  • Built-in' high level self diagnostics with fault code display.
MODELConfigurationInput MBtuHOutput MBtuHAFUECFMDimensions
TM9Y060B12MP11Up. Hor., Down 60.0 58.0 96.0 1200 33x17.5x29.5 122
TM9Y080B12MP11Up. Hor., Down 80.0 77.0 96.0 1200 33x17.5x29.5 126
TM9Y080C16MP11Up. Hor., Down 80.0 77.0 96.0 1600 33x21x29.5 136
TM9Y100C16MP11Up. Hor., Down 100.0 96.0 96.0 1600 33x21x29.5 142
TM9Y100C20MP11Up. Hor., Down 100.0 96.0 96.0 2000 33x21x29.5 145
TM9Y120D20MP11Up. Hor., Down 120.0 115.0 96.0 2000 33x24.5x29.5 156
TM9Y040A10MPUp. Hor., Down 40.0 38.0 96.0 1000 33x14.5x29.5 113

Warranty Information

  • All Parts - Limited 10 Year Parts With Prompt Online Registration
  • Heat Exchanger - Limited Lifetime With Prompt Online Registration
